Gunite Equipment & Supply C-10SL

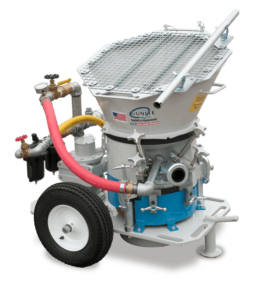

C10SL gunite machine

The C-10SL is a rotary bowl-type dry-mix gunite machine, powered by an air motor for high production applications. Designed for demanding environments such as tunnelling, mining, refractory spraying and concrete remediation, these pumps deliver reliable performance and consistent output. The C-10SL gunite machine offers a heavy-duty design and powerful output, making it the preferred choice for contractors across the world. Features include a premium-life feed system, moulded discharge liner and exhaust suppression chamber. A tilt-hopper provides easy access for cleaning and setup. All units include air line regulating valves and choice of high or medium-production feed system. An air compressor is required to power the C-10SL shotcrete machine. If you have an existing batch plant to power your shotcrete machine, look at our C-10HHD model which is powered by a power take-off (PTO) connection.

Each machine is supported with local servicing, parts, and operator training to keep your projects moving.

Scroll down to our video library to see the C-10 gunite machine in action.

CGS also offers a C10SL hire fleet for short-term project requirements.

Contact us today to discuss the gunite machine that stands the test of time.

Enquire Now

Features

Dimensions 51 × 51 × 59 in
Max Output 15 yd3/hr (11.5 m3)
Motor 9 hp air
Air Compressor Req 365–900 cfm
WATER SOURCE REQ 50 psi / 420 gph flow rate
Feed System Included
Hinged Hopper Yes
External Lubrication Yes
Drive System Spur gear
Outlet Size 1/5 to 2 in.
Max Aggregate 3/4 in. minus (19 mm)
Max Vertical 300 ft (91 m)
Max Horizontal 1000 ft (300 m)
Dimensions 28 x 37 x 41 in. (W x L x H)
Weight 740 lb (335 kg)

Applications

  • Refractory
  • Shotcrete
  • Gunite
  • Tunnels
  • Concrete Repair
  • Buildings
  • Excavations
  • Slope Stablisation
  • Rockscaping
  • Pools
  • Mines
  • Channels
  • Piers
  • Sea Walls
  • Sewers
  • Parks & Zoos
  • Retaining & Fire Walls
  • Dams & Reservoirs
  • Sand & Rock Backfill
  • Concrete Pipe
  • Ditches
