Gunite Equipment & Supply HG-9

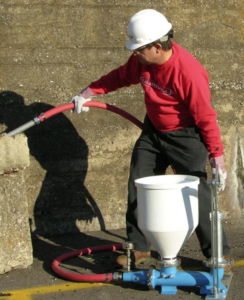

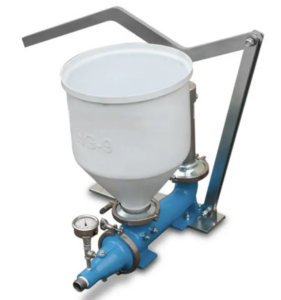

The Handy-Grout HG-9 is a hand-operated, portable grout pump for smaller grouting jobs, such as door frames, encasements, waterproofing, void fill and other grouting applications. The HG-9 is designed for durability while still offering a lightweight grouting solution. The HG-9 features cast assembly, ball-check manifold, polyurethane hopper and pressure gauge.
The design maximises two important features, durability and weight. The grout pump’s cast assembly ensures a durable design free from excessive welding and the polyurethane hopper ensures lightweight and easy cleaning. An in-line pressure gauge allows the operator to monitor the efficiency in relation to the thickness of the slurry used for the application.
The Handy-Grout HG-9 portable grout pump comes with a 1″ x 10′ hose assembly.
CGS Equipment also offers hand-operated grout pumps in our hire fleet for short-term project requirements.
Features
- Lightweight
- Polyurethane Hopper
- Durable Design
- Hose Assembly
- Self-priming Manifold
| Shipping Weight | 110 lbs |
|---|---|
| Shipping Dimensions | 48 × 48 × 40 in |
| Part # | 706809 |
| Max Output | 15 cu ft/hr (424 L) |
| Line Pressure | 0 to 100 psi |
| Material Hopper | 5 gallon (19 L) |
| Outlet Size | 1 in. |
| Max Vertical | 20 ft (6 m) |
| Max Horizontal | 50 ft (15 m) |
| Power Source | Manual |
| Dimensions | 25 x 27 x 33 in. (W x L x H) |
| Weight | 53 lb (24 kg) |
Applications

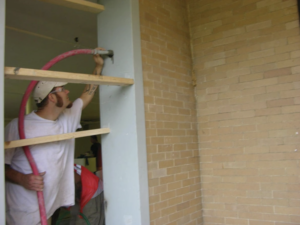

- Door frames
- Window frames
- Encasements
- Waterproofing
- Void fill
- Marine/underwater
- Hollow metal filling
- Precast
- Machine base
- Under sealing
- Slab raising
